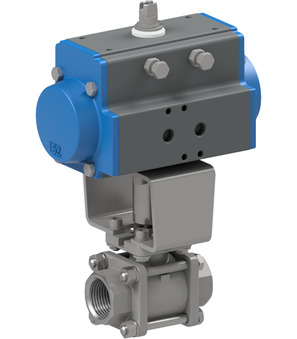

BA033-12-T0

BA033-12-T0

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; NO; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm; Actuator PAS0525-B

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.878 Kg
Short Itemnumber: BA03312T0
https://www.stasto.rs/web/image/product.template/153864/image_1920?unique=3970b0b

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; NO; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAS0525-B

41.959,00 din. 41959.0 RSD 41.959,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel 710000-1/2"
    710000-1/2" x 1.0
    Ball valve made of stainless steel 710000-1/2"
    Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm
    Add to Cart
    Pneumatic actuator PAS0525-B
    PAS0525-B x 1.0
    Pneumatic actuator PAS0525-B
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
    Add to Cart
