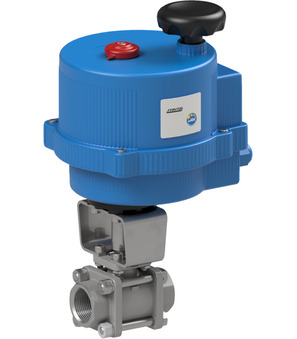

Ball valve with electrical actuator BA033-14-0L-0

Ball valve with electrical actuator BA033-14-0L-0

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Free of oil and grease for oxygen; RP 1/4"; DN 8mm; Operating pressure at 30°C 60bar; Operating pressure at 100°C 40bar; Operating pressure at 160°C 25bar; Length 57mm; Operating time 10s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.803 Kg
Short Itemnumber: BA033140L0
https://www.stasto.rs/web/image/product.template/205391/image_1920?unique=bbc91d7

ball valve with electrical actuator; female thread; body, ball AISI 316; seals PTFE/FKM; free of oil and grease for oxygen; RP 1/4"; DN 8mm; operating pressure at 30°C 60bar; operating pressure at 100°C 40bar; operating pressure at 160°C 25bar; length 57mm; operating time 10s; voltage 24VAC/DC

62.181,00 din. 62181.0 RSD 62.181,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 1/4"
DN 8 mm
Length 57 mm
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB015L24
Operating time 10 s
BA033-14-L-0 x 1.0
Ball valve made of stainless steel BA033-14-L-0
Ball valve made of stainless steel Series BA033-L-0; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Free of oil and grease for oxygen; RP 1/4"; Nominal diameter 8mm; Length 57mm; Operating pressure at 30°C 60bar; Operating pressure at 100°C 40bar; Operating pressure at 160°C 25bar
Add to Cart
Electrical actuator VB015-L-24
VB015-L-24 x 1.0
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
Add to Cart
