BA033-14-D0-01

BA033-14-D0-01

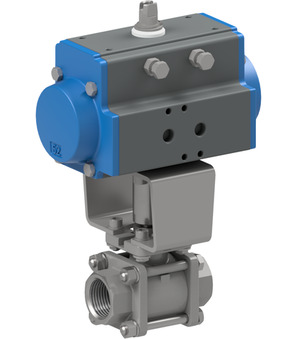

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0-64bar; length 57mm; actuator PAD032-H; high temperature design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.863 Kg
Short Itemnumber: BA03314D001
https://www.stasto.rs/web/image/product.template/177447/image_1920?unique=23c28d6

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0-64bar; length 57mm; actuator PAD032-H; high temperature design

38.364,00 din. 38364.0 RSD 38.364,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-64bar
Brand STASTO
Pressure range 0-64bar
Brand STASTO
Ball valve made of stainless steel 710000-1/4"
710000-1/4" x 1.0 Pcs
Ball valve made of stainless steel 710000-1/4"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0-64bar; Length 57mm
Pneumatic actuator PAD032-H
PAD032-H x 1.0 Pcs
Pneumatic actuator PAD032-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm
RI3021 x 1.0 Pcs
RI3021
Mounting bracket; F03; 11-5
