BA035-25-S2

BA035-25-S2

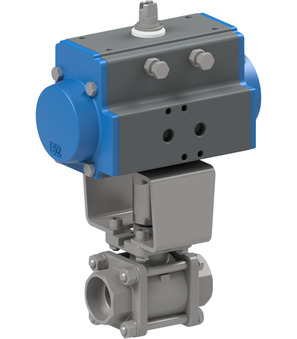

Ball valve with pneumatic actuator; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAS1003

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.58 Kg
Short Itemnumber: BA03525S2
https://www.stasto.rs/web/image/product.template/134850/image_1920?unique=f96ddcc

ball valve with pneumatic actuator; socket weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAS1003

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of stainless steel 711000-25
711000-25 x 1.0 Pcs
Ball valve made of stainless steel 711000-25
Ball valve made of stainless steel Series 711000; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
Pneumatic actuator PAS1003
PAS1003 x 1.0 Pcs
Pneumatic actuator PAS1003
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 35,9Nm
RI4320 x 1.0 Pcs
RI4320
Mounting bracket; F07-F04; Bolt 17-8
