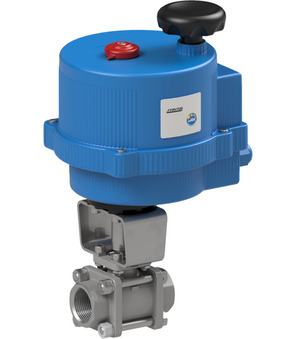

Ball valve with electrical actuator BA036-10-0H

Ball valve with electrical actuator BA036-10-0H

Ball valve with electrical actuator Series BA036; For steam; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 1"; DN 25mm; Length 92mm; Operating time 8s; Voltage 100…240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.72 Kg
Short Itemnumber: BA036100H
https://www.stasto.rs/web/image/product.template/130571/image_1920?unique=78aebe9

ball valve with electrical actuator series BA036; for steam; three-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; pressure range steam 0...15bar; medium temperature -20...+198°C; RP 1"; DN 25mm; length 92mm; operating time 8s; voltage 100…240VAC

95.904,00 din. 95904.0 RSD 95.904,00 din.

cena na zahtev

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...15 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
All specifications (6)
Pressure range 0...15 bar
Female thread RP 1"
DN 25 mm
Length 92 mm
Operating time 8 s
Voltage 100-240VAC
Ball valve made of stainless steel 710060-1"
710060-1" x 1.0 Pcs
Ball valve made of stainless steel 710060-1"
Ball valve made of stainless steel Series 710060; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 1"; Nominal diameter 25mm; Length 92mm
Electrical actuator VB030-H
VB030-H x 1.0 Pcs
Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
