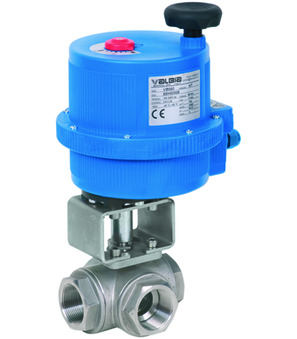

Ball valve with electrical actuator BA038-112-0H

Ball valve with electrical actuator BA038-112-0H

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 11/2"; DN 38mm; Pressure range 0...64bar; Length 125,8mm; Operating time 27s; Voltage 100-240VAC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.09 Kg
Short Itemnumber: BA0381120H
https://www.stasto.rs/web/image/product.template/152663/image_1920?unique=b82de6b

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 11/2"; DN 38mm; pressure range 0...64bar; length 125,8mm; operating time 27s; voltage 100-240VAC; ball T

187.788,00 din. 187788.0 RSD 187.788,00 din.

cena na zahtev

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread G 1 1/2"
DN 38 mm
Length 125,8 mm
All specifications (7)
Pressure range 0...64 bar
Female thread G 1 1/2"
DN 38 mm
Length 125,8 mm
Operating time 27 s
Voltage 100-240VAC
Ball T
Ball valve made of stainless steel BA038-112-L
BA038-112-L x 1.0 Pcs
Ball valve made of stainless steel BA038-112-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 11/2"; Nominal diameter 32mm; Pressure range 0...64bar; Length 125,8mm; Ball T
Electrical actuator VB110-H
VB110-H x 1.0 Pcs
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
RI3764 x 1.0 Pcs
RI3764
Mounting bracket; F07-F07; Bolt 17-11
