Ball valve with pneumatic actuator BA038-34-D0-3C

Price:

73.320,00 din.
Ball valve with pneumatic actuator Series BA037, BA038-D0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA037, BA038-D0
  6. BA038-34-D0-3C

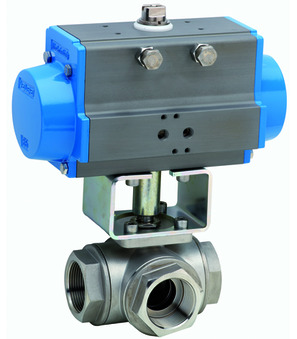

Ball valve with pneumatic actuator BA038-34-D0-3C
Ball valve with pneumatic actuator BA038-34-D0
Ball valve with pneumatic actuator BA038-34-D0
73.320,00 din.
73.320,00 din.
Ball valve with pneumatic actuator BA037-34-D0
Ball valve with pneumatic actuator BA037-34-D0
73.026,00 din.
73.026,00 din.

Ball valve with pneumatic actuator BA038-34-D0-3C

Ball valve with pneumatic actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Double acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 3/4"; Nominal diameter 16mm; Length 86,6mm; Actuator PAD063; Ball T; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: China
Weight: 3.43 Kg
Short Itemnumber:BA03834D03C
https://www.stasto.rs/web/image/product.template/185434/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; double acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 3/4"; nominal diameter 16mm; length 86,6mm; actuator PAD063; ball T; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

73.320,00 din. 73320.0 RSD 73.320,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Ball
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 16 mm
Length 86,6 mm
Designs
Ball T
characteristics
Actuator PAD063

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA037, BA038-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA037, BA038-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA037, BA038-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA037, BA038-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA037, BA038-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA037, BA038-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA037, BA038-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA037, BA038-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA037, BA038-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA037, BA038-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA037, BA038-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA037, BA038-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA037, BA038-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA037, BA038-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA037, BA038-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA037, BA038-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA037, BA038-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA037, BA038-D0_SV.pdf
Download
Ball valve made of stainless steel BA038-34-L-3C
BA038-34-L-3C x 1.0
Ball valve made of stainless steel BA038-34-L-3C
Ball valve made of stainless steel; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C; G 3/4"; Nominal diameter 16mm; Pressure range 0...63bar; Length 86,6mm; Ball T; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
