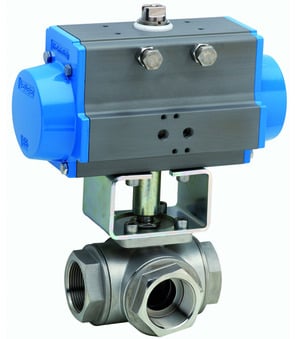

Ball valve with pneumatic actuator BA038-38-S0

Ball valve with pneumatic actuator BA038-38-S0

Ball valve with pneumatic actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 3/8"; Nominal diameter 11mm; Length 69,4mm; Actuator PAS0635; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.91 Kg
Short Itemnumber: BA03838S0
https://www.stasto.rs/web/image/product.template/152708/image_1920?unique=b82de6b

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 3/8"; nominal diameter 11mm; length 69,4mm; actuator PAS0635; ball T

62.956,00 din. 62956.0 RSD 62.956,00 din.

cena na zahtev

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64bar
Female thread G 3/8"
DN 11 mm
Length 69,4 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64bar
Female thread G 3/8"
DN 11 mm
Length 69,4 mm
Ball T

BA038-38-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA038-38-L
BA038-38-L x 1.0 Pcs
Ball valve made of stainless steel BA038-38-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 3/8"; Nominal diameter 11mm; Pressure range 0...64bar; Length 69,4mm; Ball T
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3769 x 1.0 Pcs
RI3769
Mounting bracket; F05/F03-F04; Bolt 14-9
