BA043-100-S2-A

Name: BA043-100-S2-A
Brand: STASTO
SKU: BA043-100-S2-A
Price: 999999.0 RSD
Availability: InStock

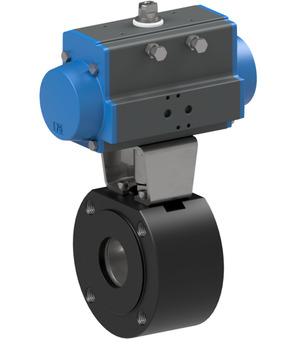

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 4...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 152mm; Actuator PAD1804

Intrastat No.: 84818081
Country of origin: Italy
Weight: 76.05 Kg
Short Itemnumber: BA043100S2A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 4...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 100mm; length 152mm; actuator PAD1804

999.999,00 din. 999999.0 RSD 999.999,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BA043-100-L-A x 1.0

Flanged ball valve BA043-100-L-A

Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 152mm

Add to Cart

PAS1804 x 1.0

Pneumatic actuator PAS1804

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 180mm; Flange ISO5211 F10/F14; Female square 36mm; Torque at 5,5bar 262Nm

Add to Cart

RI3005 x 1.0
