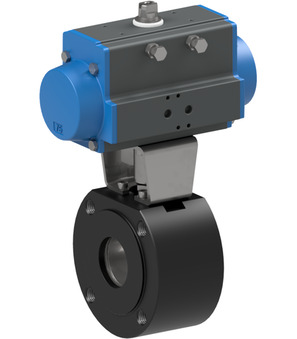

Flanged ball valve with pneumatic actuator BA043-40-D0-A

Flanged ball valve with pneumatic actuator BA043-40-D0-A

Flanged ball valve with pneumatic actuator Series BA043-A; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.48 Kg
Short Itemnumber: BA04340D0A

flanged ball valve with pneumatic actuator series BA043-A; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAD063

67.798,00 din. 67798.0 RSD 67.798,00 din.

excl. tax

DN
- 40 mm
Length
- 63,5 mm
Design
- ATEX
Actuator
- PAD063

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16bar
DN	40 mm
Length	63,5 mm
Design	ATEX

Data sheets, drawings and CAD files

Pressure range	0...16bar
DN	40 mm
Length	63,5 mm
Design	ATEX

BA043-40-D0-A

Documents

1 Documents

English

Declarations of Conformity

1

PDF
Druckluftdrehantrieb · EN
ATEX - certificate 32 KB Updated 13/06/2026

View Download

Flanged ball valve BA043-40-L-A

BA043-40-L-A x 1.0 Pcs

Flanged ball valve BA043-40-L-A

Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm

Pneumatic actuator PAD063

PAD063 x 1.0 Pcs

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

RI3002 x 1.0 Pcs

RI3002

Mounting bracket, F07/F05-F05, Bolt 14-10
