Flanged ball valve with pneumatic actuator BA043-40-S0-A

Price:

84.283,00 din.
Flanged ball valve with pneumatic actuator Series BA043-S0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Flanged ball valve with pneumatic actuator Series BA043-S0
  6. BA043-40-S0-A
Flanged ball valve with pneumatic actuator BA043-40-S0-A
Flanged ball valve with pneumatic actuator BA043-80-S0-A
Flanged ball valve with pneumatic actuator BA043-80-S0-A
168.213,00 din.
168.213,00 din.
Flanged ball valve with pneumatic actuator BA043-50-S0
Flanged ball valve with pneumatic actuator BA043-50-S0
98.442,00 din.
98.442,00 din.

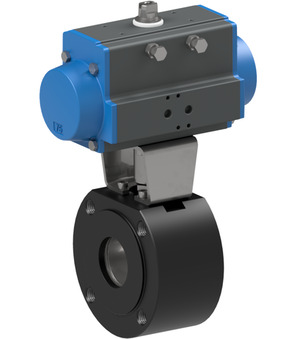

Flanged ball valve with pneumatic actuator BA043-40-S0-A

Flanged ball valve with pneumatic actuator Series BA043; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.63 Kg
Short Itemnumber:BA04340S0A
https://www.stasto.rs/web/image/product.template/147328/image_1920?unique=e5e4a60

flanged ball valve with pneumatic actuator series BA043; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAS0855

84.283,00 din. 84283.0 RSD 84.283,00 din.

cena na zahtev

  • DN
  • Length
  • Design
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 40 mm
Length 63,5 mm
design
Design ATEX
characteristics
Actuator PAS0855

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BA043-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA043-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med pneumatisk drejedrev Serie BA043-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA043-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA043-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BA043-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA043-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BA043-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA043-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA043-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BA043-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BA043-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BA043-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA043-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BA043-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA043-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA043-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med pneumatiskt vriddon Serie BA043-D0_SV.pdf
Download
Flanged ball valve BA043-40-L-A
BA043-40-L-A x 1.0
Flanged ball valve BA043-40-L-A
Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
