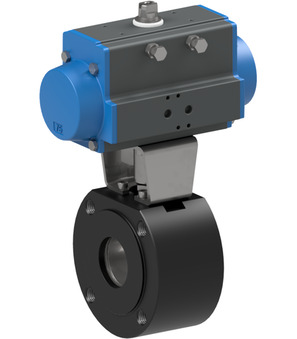

Flanged ball valve with pneumatic actuator BA043-80-D0-A

Flanged ball valve with pneumatic actuator BA043-80-D0-A

Flanged ball valve with pneumatic actuator Series BA043-A; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 122mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy

Weight: 25.18 Kg
Short Itemnumber: BA04380D0A

flanged ball valve with pneumatic actuator series BA043-A; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 80mm; length 122mm; actuator PAD085

123.892,00 din. 123892.0 RSD 123.892,00 din.

excl. tax

DN
- 80 mm
Length
- 122 mm
Design
- ATEX
Actuator
- PAD085

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16bar
DN	80 mm
Length	122 mm
Design	ATEX

Data sheets, drawings and CAD files

Pressure range	0...16bar
DN	80 mm
Length	122 mm
Design	ATEX

BA043-80-D0-A

Documents

1 Documents

English

Declarations of Conformity

1

PDF
Druckluftdrehantrieb · EN
ATEX - certificate 32 KB Updated 13/06/2026

View Download

Flanged ball valve BA043-80-L-A

BA043-80-L-A x 1.0 Pcs

Flanged ball valve BA043-80-L-A

Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm

Pneumatic actuator PAD085

PAD085 x 1.0 Pcs

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

RI3003 x 1.0 Pcs

RI3003

Mounting bracket; F07/F07; 17-14

Accessory Products

EB0X01

Material of case: Plastic

Brand: STASTO

EB0X02

Material of case: Plastic

Brand: STASTO

EB0X04YA

Material of case: Aluminum

Brand: STASTO

EB0X04YA-ULCSA-01

EB0X04YA-ULCSA-01

Material of case: Aluminum

Brand: STASTO

EB0X05

Design: ATEX

Material of case: Plastic

Brand: STASTO

RI4606

Diameter: 85 mm

RI4620

Diameter: 85 mm

RI4648

Diameter: 85 mm
