BA044-100-S0-A-01

Name: BA044-100-S0-A-01
Brand: STASTO
SKU: BA044-100-S0-A-01
Price: 330939.0 RSD
Availability: InStock

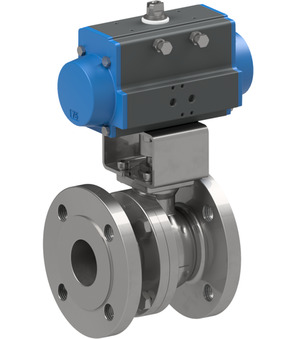

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 100mm; Pressure range 0-16bar; Flange PN16; Length 190mm; Actuator PAS1605

Intrastat No.: 84818081
Country of origin: Italy
Weight: 58.36 Kg
Short Itemnumber: BA044100S0A01

flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1 R27; body zinc plated steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 100mm; pressure range 0-16bar; flange PN16; length 190mm; actuator PAS1605

330.939,00 din. 330939.0 RSD 330.939,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

760001-100 x 1.0

Flanged ball valve 760001-100

Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 100mm; Pressure range 0-16bar; Flange PN16; Length 190mm

Add to Cart

RI3528 x 1.0

RI3528

Mounting bracket; F10/F07-F10; Bolt 22-18

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart
