BA044-200-S0

Price:

1.111.115,00 din.
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA044-200-S0
BA044-200-S0
BA055-125-D0
BA055-125-D0
1.062.494,00 din.
1.062.494,00 din.
BA056-125-B-01
BA056-125-B-01
1.113.324,00 din.
1.113.324,00 din.

BA044-200-S0

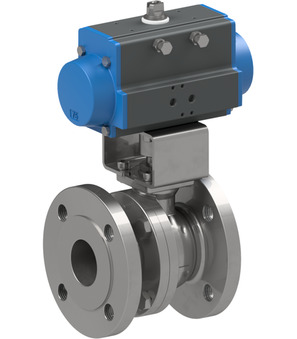

Flanged ball valve with pneumatic actuator; Fire-safe; TA-Luft; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 200mm; Pressure range 0...16bar; Flange PN16; Length 400mm; Actuator PAS2305

Intrastat No.: 84818081
Country of origin: Italy
Weight: 178.0 Kg
Short Itemnumber:BA044200S0
https://www.stasto.rs/web/image/product.template/151919/image_1920?unique=21917a8

flanged ball valve with pneumatic actuator; fire-safe; TA-Luft; length according to EN558−1 R27; body zinc plated steel; ball AISI 304; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 200mm; pressure range 0...16bar; flange PN16; length 400mm; actuator PAS2305

1.111.115,00 din. 1111115.0 RSD 1.111.115,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Flanged ball valve 760001-200
    760001-200 x 1.0
    Flanged ball valve 760001-200
    Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 200mm; Pressure range 0-16bar; Flange PN16; Length 400mm
    Add to Cart
    Pneumatic actuator PAS2305
    PAS2305 x 1.0
    Pneumatic actuator PAS2305
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm
    Add to Cart
