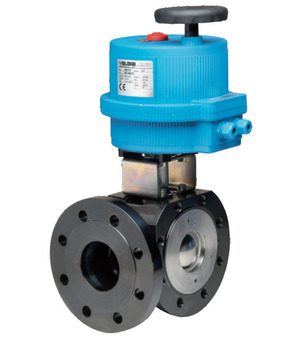

Ball valve with electrical actuator BA046-65-0H

Ball valve with electrical actuator BA046-65-0H

Ball valve with electrical actuator Series BA046, BA047; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 65mm; DN ball 50,2mm; Length 106mm; Operating time 27s; Voltage 100-240VAC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 25.13 Kg
Short Itemnumber: BA046650H
https://www.stasto.rs/web/image/product.template/117916/image_1920?unique=e017781

ball valve with electrical actuator series BA046, BA047; 3-way-type; sealing on two sides; pressure inlet just in front; reduced bore; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; pressure range 0...16bar; medium temperature -10...+160°C; nominal diameter 65mm; DN ball 50,2mm; length 106mm; operating time 27s; voltage 100-240VAC; ball L

225.741,00 din. 225741.0 RSD 225.741,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • DN ball
  • Ball
  • Voltage
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 65 mm
DN ball 50,2 mm
Length 106 mm
All specifications (7)
Pressure range 0...16bar
DN 65 mm
DN ball 50,2 mm
Length 106 mm
Operating time 27 s
Voltage 100-240VAC
Ball L
Flanged ball valve 776000-65
776000-65 x 1.0 Pcs
Flanged ball valve 776000-65
Flanged ball valve Series 776000, 776001; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 65mm; DN ball 50,2mm; Length 106mm; Ball L
Electrical actuator VB110-H
VB110-H x 1.0 Pcs
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
