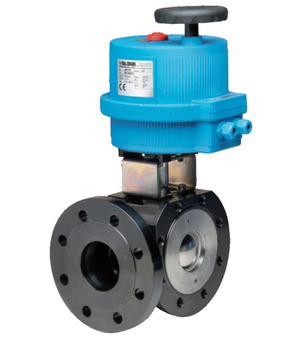

Ball valve with electrical actuator BA047-125-0L
Ball valve with electrical actuator BA046-100-0H
Ball valve with electrical actuator BA046-100-0H
348.517,00 din.
348.517,00 din.
Ball valve with pneumatic actuator BA050-32-S0
Ball valve with pneumatic actuator BA050-32-S0
105.033,00 din.
105.033,00 din.

Ball valve with electrical actuator BA047-125-0L

Ball valve with electrical actuator Series BA046, BA047; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 125mm; DN ball 100mm; Length 196mm; Operating time 27s; Voltage 24VAC/DC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 167.74 Kg
Short Itemnumber:BA0471250L
https://www.stasto.rs/web/image/product.template/131768/image_1920?unique=c096d6d

ball valve with electrical actuator series BA046, BA047; 3-way-type; sealing on two sides; pressure inlet just in front; reduced bore; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; pressure range 0...16bar; medium temperature -10...+160°C; nominal diameter 125mm; DN ball 100mm; length 196mm; operating time 27s; voltage 24VAC/DC; ball T

640.410,00 din. 640410.0 RSD 640.410,00 din.

cena na zahtev

  • DN
  • Length
  • DN ball
  • Ball
  • Voltage
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 125 mm
Length 196 mm
DN ball 100 mm
Designs
Ball T
Electrical key figures
Voltage 24VAC/DC
characteristics
Operating time 27 s
Flanged ball valve BA047-125-L
BA047-125-L x 1.0
Flanged ball valve BA047-125-L
Flanged ball valve Series BA046, BA047; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 125mm; DN ball 100mm; Length 196mm; Ball T
Add to Cart
Electrical actuator VB190-L
VB190-L x 1.0
Electrical actuator VB190-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
Add to Cart
