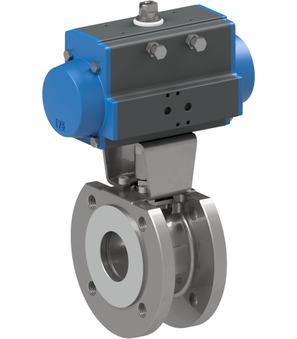

Flanged ball valve with pneumatic actuator BA049-25-S0-01
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Actuator PAS0635; With control ball V30-60
Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.81 Kg
Short Itemnumber: BA04925S001
Country of origin: Italy
Weight: 4.81 Kg
Short Itemnumber: BA04925S001
flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; actuator PAS0635; with control ball V30-60
