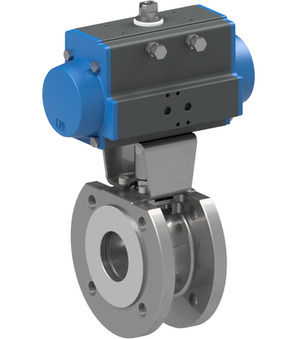

Flanged ball valve with pneumatic actuator BA049-25-T0

Name: Flanged ball valve with pneumatic actuator BA049-25-T0
Brand: STASTO
SKU: BA049-25-T0
Price: 73508.0 RSD
Availability: InStock

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Actuator PAS0635; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.495 Kg
Short Itemnumber: BA04925T0

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; actuator PAS0635; safety position NO

73.508,00 din. 73508.0 RSD 73.508,00 din.

DN
- 25 mm
Length
- 46 mm
Pressure range
- 0...16 bar
Actuator
- PAS0635

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	25 mm
Length	46 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS0635

721000-25 x 1.0

Flanged ball valve 721000-25

Flanged ball valve Series 721000; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAS0635-B x 1.0

PAS0635-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3007 x 1.0
