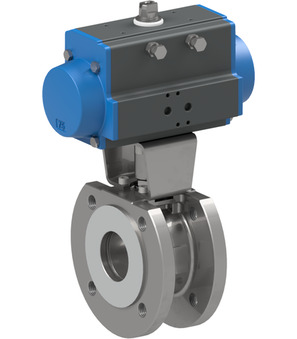

Flanged ball valve with pneumatic actuator BA049-40-S0-01

Price:

999.999,00 din.
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA049-40-S0-01
Flanged ball valve with pneumatic actuator BA049-40-S0-01
Flanged ball valve with pneumatic actuator BA049-40-D0-01
Flanged ball valve with pneumatic actuator BA049-40-D0-01
999.999,00 din.
999.999,00 din.
501551
501551
14.617,00 din.
14.617,00 din.

Flanged ball valve with pneumatic actuator BA049-40-S0-01

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS0855; V-Ball 90°

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.63 Kg
Short Itemnumber:BA04940S001
https://www.stasto.rs/web/image/product.template/180687/image_1920?unique=07bf1b6

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAS0855; V-ball 90°

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 40 mm
Length 63,5 mm
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS0855
Flanged ball valve BA049-40-L-01
BA049-40-L-01 x 1.0
Flanged ball valve BA049-40-L-01
Flanged ball valve Series BA049; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm; V-Ball 90°
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
