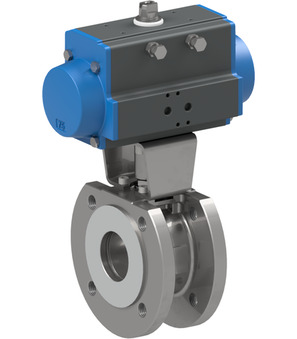

Ball valve with pneumatic actuator BA050-25-D0

Price:

78.008,00 din.
Ball valve with pneumatic actuator Series BA050-D0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA050-D0
  6. BA050-25-D0
Ball valve with pneumatic actuator BA050-25-D0
Ball valve with pneumatic actuator BA050-20-D0
Ball valve with pneumatic actuator BA050-20-D0
72.791,00 din.
72.791,00 din.
Ball valve with pneumatic actuator BA050-32-D0
Ball valve with pneumatic actuator BA050-32-D0
89.370,00 din.
89.370,00 din.

Ball valve with pneumatic actuator BA050-25-D0

Ball valve with pneumatic actuator Series BA050; For steam; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 25mm; Length 46mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.21 Kg
Short Itemnumber:BA05025D0
https://www.stasto.rs/web/image/product.template/103384/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA050; for steam; flange PN16; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 25mm; length 46mm; actuator PAD063

78.008,00 din. 78008.0 RSD 78.008,00 din.

cena na zahtev

  • Connection
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Coil
  • Actuator
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
Contact Us
dimension
DN 25 mm
Length 46 mm
characteristics
Actuator PAD063

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA050-D0_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Ball valve with pneumatic actuator Series BA050_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA050-D0_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s otočným pneumatickým pohonem série BA050_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA050-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA050-D0_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Druckluftdrehantrieb Serie BA050_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA050-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA050-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA050-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA050-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim zakretnim pogonom Serija BA050-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA050-D0_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA050_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA050-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA050-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA050-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA050-D0_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem pneumatycznym Seria BA050_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA050-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA050-D0_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA050_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA050-D0_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa pneumatskim aktuatorom serije BA050_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA050-D0_SV.pdf
Download
Flanged ball valve BA050-25-L-A
BA050-25-L-A x 1.0
Flanged ball valve BA050-25-L-A
Flanged ball valve Series BA050-L-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 25mm; Length 46mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
