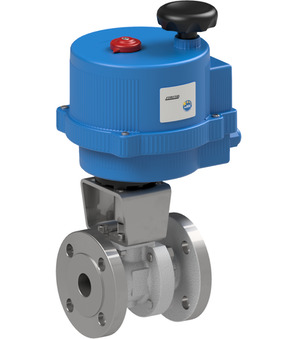

Flanged ball valve with electrical actuator BA051-32-CL

Name: Flanged ball valve with electrical actuator BA051-32-CL
Brand: STASTO
SKU: BA051-32-CL
Price: 174746.0 RSD
Availability: InStock

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 32mm; Pressure range 0-40bar; Flange PN40; Length 130mm; Operating time; Positioner 4-20mA/0-10V; Torque 60Nm; 9s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.4 Kg
Short Itemnumber: BA05132CL

flanged ball valve with electrical actuator series 8E053; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; DN 32mm; pressure range 0-40bar; flange PN40; length 130mm; operating time; positioner 4-20mA/0-10V; torque 60Nm; 9s; voltage 24VAC/DC

174.746,00 din. 174746.0 RSD 174.746,00 din.

excl. tax

DN
- 32 mm
Length
- 130 mm
Flange
- PN40
Voltage
- 24VAC/DC
Pressure range
- 0...40 bar
Actuator
- VB060L
Operating time
- 9 s
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...40 bar
DN	32 mm
Flange	PN40
Length	130 mm

All specifications (7)

Specifications
Spare Parts

Pressure range	0...40 bar
DN	32 mm
Flange	PN40
Length	130 mm
Operating time	9 s
Voltage	24VAC/DC
Brand	STASTO

760000-32 x 1.0 Pcs

Flanged ball valve 760000-32

Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 32mm; Pressure range 0-40bar; Flange PN40; Length 130mm

VB060-RE9-Q14 x 1.0 Pcs

VB060-RE9-Q14

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-star 14mm; Voltage 24VAC/DC; Protection class IP67

RI3525 x 1.0 Pcs
