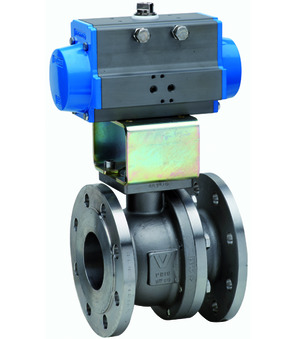

Flanged ball valve with pneumatic actuator BA051-50-S0-A

Flanged ball valve with pneumatic actuator BA051-50-S0-A

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 19.07 Kg
Short Itemnumber: BA05150S0A
https://www.stasto.rs/web/image/product.template/137887/image_1920?unique=7d94123

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0...40bar; flange PN40; length 150mm; actuator PAS1005

175.169,00 din. 175169.0 RSD 175.169,00 din.

cena na zahtev

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 50 mm
Flange PN40
Length 150 mm
Design ATEX

BA051-50-S0-A

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve 760000-50
760000-50 x 1.0 Pcs
Flanged ball valve 760000-50
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3522 x 1.0 Pcs
RI3522
Mounting bracket F07-F07, Bolt 17-14
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4607
RI4607
Diameter
100 mm
RI4621
RI4621
Diameter
100 mm
RI4649
RI4649
Diameter
100 mm
