BA051-65-D0-01

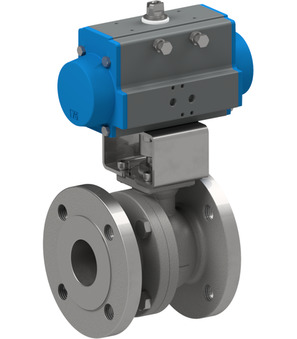

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Flange PN16; Length 170mm; Actuator PAD085; Actuator 90° Offset structure

Intrastat No.: 84818081
Country of origin:
Italy Made in Europe
Weight:
20.89 Kg
Short Itemnumber:
BA05165D001
https://www.stasto.rs/web/image/product.template/240384/image_1920?unique=5ef1ee4

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Flange PN16; Length 170mm; Actuator PAD085

201.924,00 din. 201924.0 RSD 201.924,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability

Technical specifications

Pressure range 0...16 bar
DN 65 mm
Flange PN16
Length 170 mm
Pressure range 0...16 bar
DN 65 mm
Flange PN16
Length 170 mm
Brand STASTO
No spare parts are available for this product.
