BA051-80-S0-A-ABS53-PI08-EPC02400-1

BA051-80-S0-A-ABS53-PI08-EPC02400-1

BA051-80-S0-A

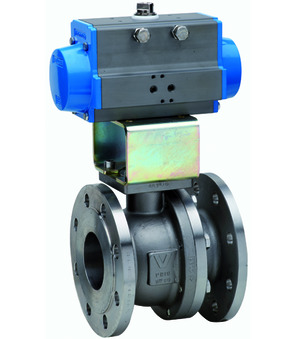

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Actuator PAS1255
ABS53-PI08
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); Actuator PAS052-270; Connection 8mm
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 36.674 Kg
Short Itemnumber: BA05180S0AABS53PI08EPC024001
https://www.stasto.rs/web/image/product.template/205255/image_1920?unique=7d94123

BA051-80-S0-A
flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0...16bar; flange PN16; length 180mm; actuator PAS1255
ABS53-PI08
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); actuator PAS052-270; connection 8mm
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC

323.102,00 din. 323102.0 RSD 323.102,00 din.

cena na zahtev

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 80 mm
Length 170 mm
Flange PN16
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 80 mm
Length 170 mm
Flange PN16
Voltage 24VDC
Design ATEX

BA051-80-S0-A-ABS53-PI08-EPC02400-1

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve with pneumatic actuator BA051-80-S0-A
BA051-80-S0-A x 1.0 Pcs
Flanged ball valve with pneumatic actuator BA051-80-S0-A
Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Actuator PAS1255
Mounted pilot valve ABS53-PI08
ABS53-PI08 x 1.0 Pcs
Mounted pilot valve ABS53-PI08
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); Actuator PAS052-270; Connection 8mm
EPC02400-1
EPC02400-1 x 1.0 Pcs
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
