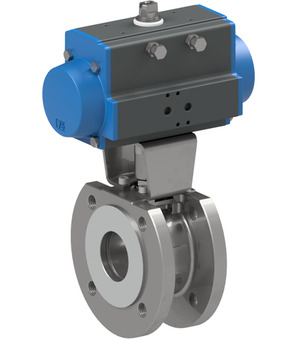

Flanged ball valve with pneumatic actuator BA052-15-D0

Flanged ball valve with pneumatic actuator BA052-15-D0

Flanged ball valve with pneumatic actuator Series BA052-D0; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar; Nominal diameter 15mm; Length 35mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.793 Kg
Short Itemnumber: BA05215D0
https://www.stasto.rs/web/image/product.template/139074/image_1920?unique=909baaf

flanged ball valve with pneumatic actuator series BA052-D0; flange PN40; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0…40bar; nominal diameter 15mm; length 35mm; actuator PAD052

60.759,00 din. 60759.0 RSD 60.759,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0…40bar
DN 15 mm
Length 35 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0…40bar
DN 15 mm
Length 35 mm

BA052-15-D0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve 720078-15
720078-15 x 1.0 Pcs
Flanged ball valve 720078-15
Flanged ball valve Series 720078; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3012 x 1.0 Pcs
RI3012
Mounting bracket; F05/F03-F32mm; Bolt 9-7
