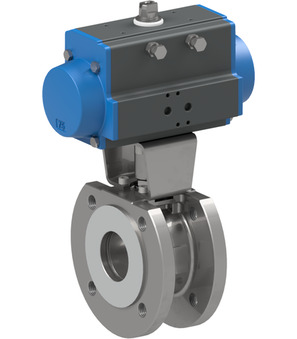

Flanged ball valve with pneumatic actuator BA052-15-S0-0

Flanged ball valve with pneumatic actuator BA052-15-S0-0

flanged ball valve with pneumatic actuator series BA052-S0; flange PN40; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0…40bar; nominal diameter 15mm; length 35mm; actuator PAS0635; free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.29 Kg
Short Itemnumber: BA05215S00
https://www.stasto.rs/web/image/product.template/220767/image_1920?unique=e5e4a60

flanged ball valve with pneumatic actuator series BA052-S0; flange PN40; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0…40bar; nominal diameter 15mm; length 35mm; actuator PAS0635; free of oil and grease for oxygen

72.074,00 din. 72074.0 RSD 72.074,00 din.

cena na zahtev

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 15 mm
Length 35 mm
characteristics
Actuator PAS0635

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Flanged ball valve with pneumatic actuator Series BA052-S0_EN.pdf
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA052-S0_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA052-S0_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA052-S0_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA052-S0_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA052-S0_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA052-S0_SRLATIN.pdf
Download
Flanged ball valve BA052-15-L-0
BA052-15-L-0 x 1.0
Flanged ball valve BA052-15-L-0
flanged ball valve series BA052; flange PN40; full bore; body, ball AISI 316; seals PTFE-reinforced/FKM; pressure range 0...40bar; medium temperature -20...+160°C; nominal diameter 15mm; length 35mm; free of oil and grease for oxygen
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
Add to Cart
