BA055-100-D0-02

Name: BA055-100-D0-02
Brand: STASTO
SKU: BA055-100-D0-02
Price: 952408.0 RSD
Availability: InStock

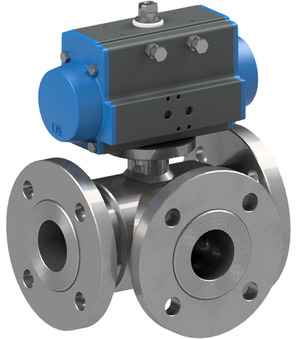

Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Incl. Pressure sleeve; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 300mm; Pressure range 0…16bar; Flange PN16; Actuator PAD115; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 58.23 Kg
Short Itemnumber: BA055100D002

flanged ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; incl. pressure sleeve; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; length 300mm; pressure range 0…16bar; flange PN16; actuator PAD115; ball L

952.408,00 din. 952408.0 RSD 952.408,00 din.

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA055-100-B-02 x 1.0

BA055-100-B-02

Flanged ball valve; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Incl. Pressure sleeve; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 100mm; DN ball 100mm; Pressure range 0...16bar; Flange PN16; Length 300mm; Ball L; Flange ISO5211 F07; Square 17mm

Add to Cart

PAD115 x 1.0

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart
