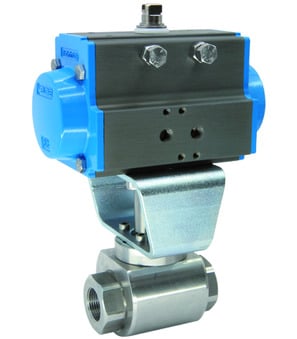

Ball valve with pneumatic actuator BA066-12-S0-A
Flanged ball valve with electrical actuator BA048-80-0H
Flanged ball valve with electrical actuator BA048-80-0H
210.807,00 din.
210.807,00 din.
BA486-12-B-A
BA486-12-B-A
21.608,00 din.
21.608,00 din.

Ball valve with pneumatic actuator BA066-12-S0-A

Ball valve with pneumatic actuator Series BA066; ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids; G 1/2"; Nominal diameter 13mm; Pressure range 0…400bar; Length 85mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Germany
Weight: 6.02 Kg
Short Itemnumber:BA06612S0A
https://www.stasto.rs/web/image/product.template/157923/image_1920?unique=c27975c

ball valve with pneumatic actuator series BA066; ATEX zone 1 and 21; female thread; body, ball AISI 316Ti; seals PEEK/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+100°C; for liquids; G 1/2"; nominal diameter 13mm; pressure range 0…400bar; length 85mm; actuator PAS0855

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 13 mm
Length 85 mm
design
Design ATEX
pressure
Pressure range 0...400 bar
characteristics
Actuator PAS0855
BA066-12-B-A x 1.0
High pressure ball valve BA066-12-B-A
High pressure ball valve Series BA066; ATEX zone 0 and 20; Bare shaft; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; For liquids; Medium temperature -20...+100°C; Connection 1/2"; Nominal diameter 13mm; Pressure range 0…400bar; Length 85mm; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
