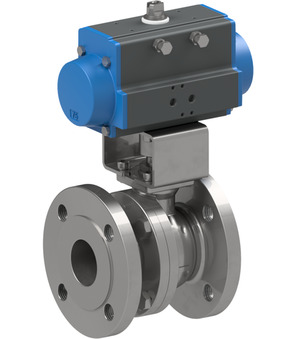

Flanged ball valve with pneumatic actuator BA075-25-T0-01

Price:

76.469,00 din.
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA075-25-T0-01
Flanged ball valve with pneumatic actuator BA075-25-T0-01
Flanged ball valve with pneumatic actuator BA075-20-S0-01
Flanged ball valve with pneumatic actuator BA075-20-S0-01
66.916,00 din.
66.916,00 din.
BA075-40-S0-01
BA075-40-S0-01
118.640,00 din.
118.640,00 din.

Flanged ball valve with pneumatic actuator BA075-25-T0-01

Flanged ball valve with pneumatic actuator Series BA075;; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 160mm; Actuator PAS0635; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.91 Kg
Short Itemnumber:BA07525T001
https://www.stasto.rs/web/image/product.template/188301/image_1920?unique=d668448

flanged ball valve with pneumatic actuator series BA075;; Fire-Safe/Antistatik according to ATEX/TA-Luft; length according to EN558−1 R1; body A216-WCB; ball AISI 304; stem seal 2-fold PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 25mm; pressure range 0-40bar; flange PN40; length 160mm; actuator PAS0635; safety position NO

76.469,00 din. 76469.0 RSD 76.469,00 din.

cena na zahtev

  • DN
  • Length
  • Flange
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 25 mm
Length 125 mm
Flange PN40
design
Design ATEX
pressure
Pressure range 0...40 bar
characteristics
Actuator PAS0635
760802-25
760802-25 x 1.0
760802-25
Flanged ball valve; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Medium temperature -10...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 160mm
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
Add to Cart
Accessory Products
​
