BA080-10-0R

BA080-10-0R

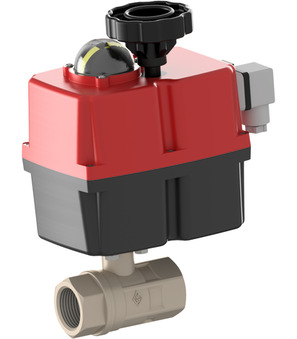

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 90mm; Operating time 9s; Voltage 24...240VAC / 24...135VDC; Protection class IP67; LED

Intrastat No.: 84818081
Country of origin: Spain
Weight: 2.483 Kg
Short Itemnumber: BA080100R
https://www.stasto.rs/web/image/product.template/138063/image_1920?unique=224f99a

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 1"; DN 25mm; pressure range 0-40bar; length 90mm; operating time 9s; voltage 24...240VAC / 24...135VDC; protection class IP67; LED

61.887,00 din. 61887.0 RSD 61.887,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-40bar
Brand STASTO

BA080-10-0R

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Ball valve made of brass BA080-10-B
BA080-10-B x 1.0 Pcs
Ball valve made of brass BA080-10-B
Ball valve made of brass Series BA080-B; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 90mm; Flange ISO5211 F03; Square 9mm
J4C20-0H9-Q11 x 1.0 Pcs
Electrical actuator J4C20-0H9-Q11
Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 20Nm; Operating time 9s; Flange ISO5211 F03/04/05-star 11mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
