BA080-112-0R

BA080-112-0R

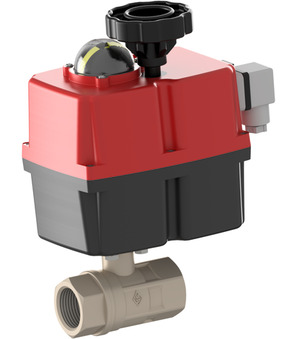

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 11/2"; DN 40mm; Pressure range 0-40bar; Length 114mm; Operating time 9s; Voltage 24...240VAC / 24...135VDC; Protection class IP67; LED

Intrastat No.: 84818081
Country of origin: Spain
Weight: 3.53 Kg
Short Itemnumber: BA0801120R
https://www.stasto.rs/web/image/product.template/137575/image_1920?unique=c096d6d

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 11/2"; DN 40mm; pressure range 0-40bar; length 114mm; operating time 9s; voltage 24...240VAC / 24...135VDC; protection class IP67; LED

82.755,00 din. 82755.0 RSD 82.755,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    CAD / 3D
    1
    CADSTEP_BA0801120R.stp
    Download
    Ball valve made of brass 2500-11/2"
    2500-11/2" x 1.0
    Ball valve made of brass 2500-11/2"
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0...40bar; Length 114mm; Flange ISO5211 F05; Square 11mm
    Add to Cart
    J4C35-0H9-Q14 x 1.0
    Electrical actuator J4C35-0H9-Q14
    Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 35Nm; Operating time 9s; Flange ISO5211 F03/04/05-star 14mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
