BA080-14-CL

BA080-14-CL

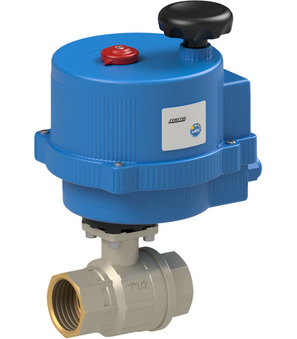

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; For a maximum of 100 operations a day; Medium temperature 0...+100°C; RP 1/4"; DN 8mm; Pressure range 0-40bar; Length 67mm; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Voltage 24VAC/DC; Protection class IP67

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.873 Kg
Short Itemnumber: BA08014CL
https://www.stasto.rs/web/image/product.template/148221/image_1920?unique=a72a40a

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; for a maximum of 100 operations a day; medium temperature 0...+100°C; RP 1/4"; DN 8mm; pressure range 0-40bar; length 67mm; incl. positioner 4-20mA/0-10V; torque 30Nm; operating time 8s; voltage 24VAC/DC; protection class IP67

97.043,00 din. 97043.0 RSD 97.043,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-40bar
Brand STASTO

BA080-14-CL

Documents

1 Documents

German / Deutsch
ZIP

Data Sheets

1
Electrical actuator VB030-L-P0S
VB030-L-P0S x 1.0 Pcs
Electrical actuator VB030-L-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
Ball valve made of brass 2500-1/4"-A
2500-1/4"-A x 1.0 Pcs
Ball valve made of brass 2500-1/4"-A
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm
