BA080-30-D0-01

BA080-30-D0-01

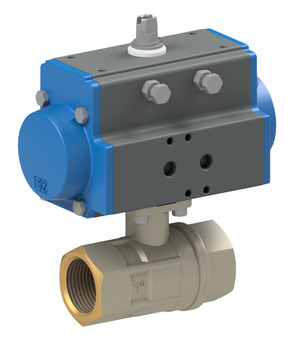

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0-16bar; Length 188mm; Actuator PAD063-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.96 Kg
Short Itemnumber: BA08030D001
https://www.stasto.rs/web/image/product.template/141553/image_1920?unique=9de388b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3"; nominal diameter 80mm; pressure range 0-16bar; length 188mm; actuator PAD063-H

125.372,00 din. 125372.0 RSD 125.372,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Pressure range 0-16bar
Brand STASTO
Ball valve made of brass 2500-3"
2500-3" x 1.0 Pcs
Ball valve made of brass 2500-3"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 188mm; Flange ISO5211 F07; Square 14mm
Pneumatic actuator PAD063-H
PAD063-H x 1.0 Pcs
Pneumatic actuator PAD063-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
