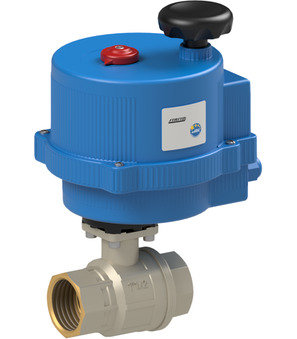

Ball valve with electrical actuator BA080-34-0D
Ball valve with electrical actuator BA009-34-0D
Ball valve with electrical actuator BA009-34-0D
57.610,00 din.
57.610,00 din.
BA168-22L-0H
BA168-22L-0H
96.397,00 din.
96.397,00 din.

Ball valve with electrical actuator BA080-34-0D

Ball valve with electrical actuator Series 8E014; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 10s; Voltage 12VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.803 Kg
Short Itemnumber:BA080340D
https://www.stasto.rs/web/image/product.template/185221/image_1920?unique=4e3b055

ball valve with electrical actuator series 8E014; female thread; body, ball brass; seals PTFE/FKM/EPDM; medium temperature 0...+100°C; RP 3/4"; DN 20mm; pressure range 0-40bar; length 76mm; operating time 10s; voltage 12VAC/DC

47.094,00 din. 47094.0 RSD 47.094,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 3/4"
DN 20 mm
Length 76 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB015H
Operating time 10 s
Ball valve made of brass 2500-3/4"-A
2500-3/4"-A x 1.0
Ball valve made of brass 2500-3/4"-A
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm; Flange ISO5211 F03; Square 9mm
Add to Cart
Electrical actuator VB015-L-12
VB015-L-12 x 1.0
Electrical actuator VB015-L-12
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 12VAC/DC; Protection class IP65
