BA081-114-0H-01

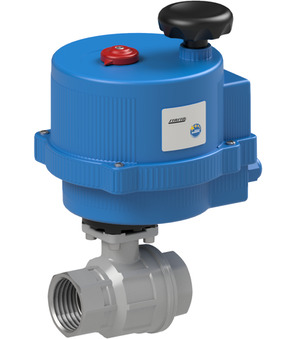

Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 11/4"; Nominal diameter 32mm; Pressure range 0...64bar; Length 100mm

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 9s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP68; Body Aluminum

Square adapter Series VK; 11X9; Length 10mm; Material Stahl
