BA081-20-D0-01

BA081-20-D0-01

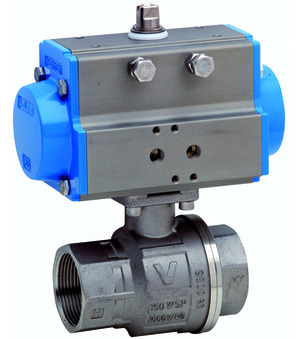

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 135mm; Actuator PAD052-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.16 Kg
Short Itemnumber: BA08120D001
https://www.stasto.rs/web/image/product.template/151648/image_1920?unique=62ac847

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 135mm; actuator PAD052-H

64.766,00 din. 64766.0 RSD 64.766,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of stainless steel BA081-20-B
BA081-20-B x 1.0 Pcs
Ball valve made of stainless steel BA081-20-B
Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 2"; Nominal diameter 50mm; Pressure range 0...64bar; Length 135mm
Pneumatic actuator PAD052-H
PAD052-H x 1.0 Pcs
Pneumatic actuator PAD052-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
