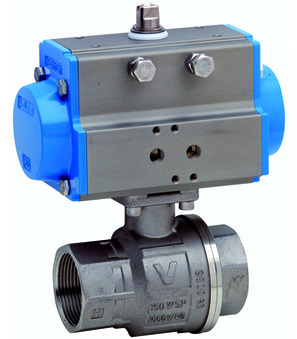

BA081-20-D0A-02

Ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-64bar; Length 135mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.0 Kg
Short Itemnumber:BA08120D0A02
https://www.stasto.rs/web/image/product.template/161176/image_1920?unique=cf2513d

ball valve with pneumatic actuator; ATEX II 2 G/D c T3; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-64bar; length 135mm; actuator PAD063

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
Ball valve made of stainless steel BA081-20-B
BA081-20-B x 1.0
Ball valve made of stainless steel BA081-20-B
Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 2"; Nominal diameter 50mm; Pressure range 0...64bar; Length 135mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
​
