BA091-15-0L
BA078-25-D0-02
BA078-25-D0-02
59.890,00 din.
59.890,00 din.
BAC4-025-CICV-D0Z01
BAC4-025-CICV-D0Z01
59.890,00 din.
59.890,00 din.

BA091-15-0L

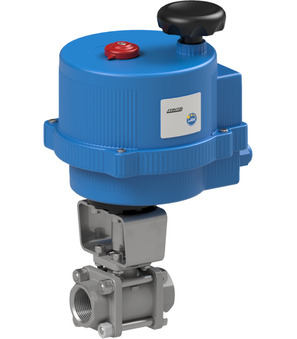

Ball valve with electrical actuator; Butt weld ends; Body; Ball 1.4401; Seals PTFE-reinforced/FKM; Compensation hole; Medium temperature -10...+160°C (Steam -10...+198°C); Nominal diameter 15mm; Pressure range 0...64bar; Pressure range Steam 0...15bar; Length 65mm; Operating time 10s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.033 Kg
Short Itemnumber:BA091150L
https://www.stasto.rs/web/image/product.template/142840/image_1920?unique=07bf1b6

ball valve with electrical actuator; butt weld ends; body; ball AISI 316; seals PTFE-reinforced/FKM; compensation hole; medium temperature -10...+160°C (steam -10...+198°C); nominal diameter 15mm; pressure range 0...64bar; pressure range steam 0...15bar; length 65mm; operating time 10s; voltage 24VAC/DC

59.643,00 din. 59643.0 RSD 59.643,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of stainless steel BA091-15-L
    BA091-15-L x 1.0
    Ball valve made of stainless steel BA091-15-L
    Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 15mm; Length 65mm
    Add to Cart
    Electrical actuator VB015-L-24
    VB015-L-24 x 1.0
    Electrical actuator VB015-L-24
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
