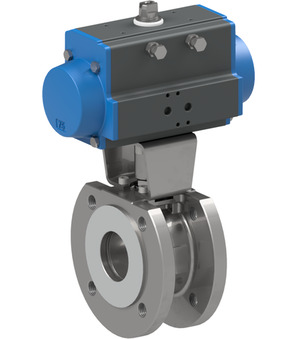

Ball valve with pneumatic actuator BA130-100-D0

Ball valve with pneumatic actuator BA130-100-D0

Ball valve with pneumatic actuator Series BA130; For steam; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+187°C; Pressure range Steam 0...11bar; Nominal diameter 100mm; Length 152mm; Actuator PAD100

Intrastat No.: 84818081
Country of origin: Italy
Weight: 27.92 Kg
Short Itemnumber: BA130100D0
https://www.stasto.rs/web/image/product.template/159819/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA130; for steam; flange PN40; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+187°C; pressure range steam 0...11bar; nominal diameter 100mm; length 152mm; actuator PAD100

312.703,00 din. 312703.0 RSD 312.703,00 din.

cena na zahtev

  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 152 mm
characteristics
Actuator PAD100
Flanged ball valve BA130-100-L
BA130-100-L x 1.0
Flanged ball valve BA130-100-L
Flanged ball valve Series BA130-L; For steam; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite/FKM; Pressure range 0...11bar; Medium temperature -20...+187°C; Nominal diameter 100mm; Length 156mm
Add to Cart
Pneumatic actuator PAD100
PAD100 x 1.0
Pneumatic actuator PAD100
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
Add to Cart
