Ball valve with pneumatic actuator Series BA137 Store

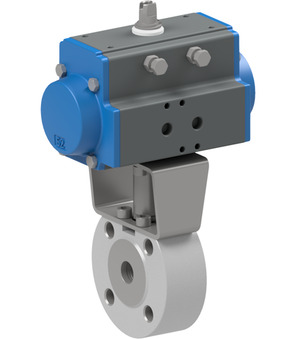

Ball valve with pneumatic actuator BA137-50-D0-A

Name: Ball valve with pneumatic actuator BA137-50-D0-A
Brand: STASTO
SKU: BA137-50-D0-A
Price: 121272.0 RSD
Availability: InStock

Ball valve with pneumatic actuator Series BA137; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.96 Kg
Short Itemnumber: BA13750D0A

ball valve with pneumatic actuator series BA137; ATEX II 2 G/D; flange PN16, full bore; body, ball AISI 316; seals PTFE/FKM; pressure range 0...16bar; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; length 82mm; actuator PAD075

121.272,00 din. 121272.0 RSD 121.272,00 din.

DN
- 50 mm
Length
- 82 mm
Design
- ATEX
Actuator
- PAD075

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	82 mm
design
Design	ATEX
characteristics
Actuator	PAD075

BA049-50-L-A x 1.0

Flanged ball valve BA049-50-L-A

Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

RI3009 x 1.0
