BA144-100-S0-3C

BA144-100-S0-3C

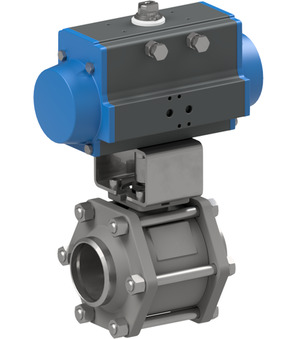

ball valve with pneumatic actuator series BA144-S-3C; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; nominal diameter 100mm; pressure range 0...16bar; length 217mm; actuator PAS1255; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 37.35 Kg
Short Itemnumber:BA144100S03C
https://www.stasto.rs/web/image/product.template/229224/image_1920?unique=3970b0b

ball valve with pneumatic actuator series BA144-S-3C; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-reinforced/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+160°C; nominal diameter 100mm; pressure range 0...16bar; length 217mm; actuator PAS1255; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

352.218,00 din. 352218.0 RSD 352.218,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BA144-100-L-3C
    BA144-100-L-3C x 1.0
    BA144-100-L-3C
    ball valve made of stainless steel series BA144-L-3C; full bore; three-parts type; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/EPDM; medium temperature -30...+160°C; nominal diameter 100mm; pressure range 0-16bar; length 217mm; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
    Add to Cart
    Pneumatic actuator PAS1255
    PAS1255 x 1.0
    Pneumatic actuator PAS1255
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
