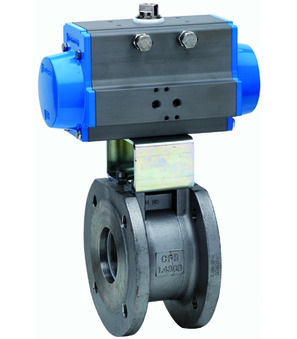

Flanged ball valve with pneumatic actuator BA160-80-D0-A

Name: Flanged ball valve with pneumatic actuator BA160-80-D0-A
Brand: STASTO
SKU: BA160-80-D0-A
Price: 999999.0 RSD
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA160-D0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents; Nominal diameter 80mm; Length 122mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy

Weight: 23.89 Kg
Short Itemnumber: BA16080D0A

flanged ball valve with pneumatic actuator series BA160-D0-A; ATEX II 2 G/D; flange PN16; body, ball AISI 304; seals PTFE; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; also suitable for solvents; nominal diameter 80mm; length 122mm; actuator PAD115
