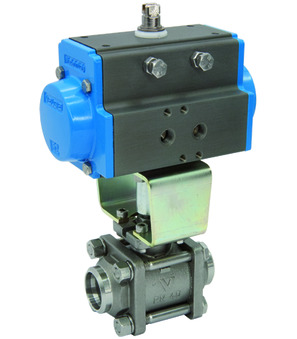

Ball valve with pneumatic actuator BA175-40-S0-A

Ball valve with pneumatic actuator BA175-40-S0-A

Ball valve with pneumatic actuator Series BA175-S; ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 7.86 Kg
Short Itemnumber: BA17540S0A
https://www.stasto.rs/web/image/product.template/129629/image_1920?unique=d7e358c

ball valve with pneumatic actuator series BA175-S; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FFKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAS0855

102.060,00 din. 102060.0 RSD 102.060,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 40 mm
Length 116 mm
Design ATEX
Pressure range 0...25 bar
DN 40 mm
Length 116 mm
Design ATEX
Ball valve made of stainless steel BA175-40-L
BA175-40-L x 1.0 Pcs
Ball valve made of stainless steel BA175-40-L
Ball valve made of stainless steel Series BA175-L; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Medium temperature -20...+160°C; Fire-safe/ATEX-Antistatic design; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
