BA177-12-S0

Name: BA177-12-S0
Brand: STASTO
SKU: BA177-12-S0
Price: 999999.0 RSD
Availability: InStock

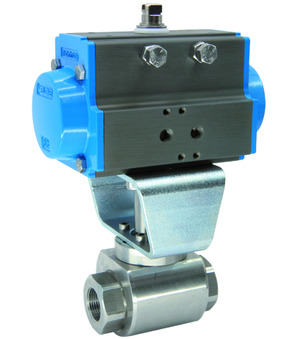

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4571; Seals PEEK/PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -50...+60°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-350bar; Length 85mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Germany
Weight: 12.74 Kg
Short Itemnumber: BA17712S0

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti; seals PEEK/PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -50...+60°C; G 1/2"; nominal diameter 13mm; pressure range 0-350bar; length 85mm; actuator PAS1155

999.999,00 din. 999999.0 RSD 999.999,00 din.

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

RKH-G1/2-13-4464-DFA x 1.0

RKH-G1/2-13-4464-DFA

High pressure ball valve; Female thread; Body, Ball 1.4571; Seals PEEK/PTFE; Medium temperature -50...+60°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-350bar; For mounting an actuator; F03/SW9

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

ATSV0703 x 1.0

ATSV0703

Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm

Add to Cart

IV/00088/13 x 1.0

IV/00088/13

Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm

Add to Cart
