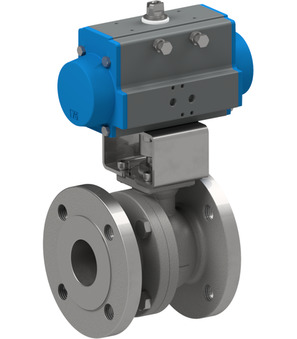

Flanged ball valve with pneumatic actuator BA178-15-S0

Flanged ball valve with pneumatic actuator BA178-15-S0

Flanged ball valve with pneumatic actuator Series BA178-S0; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar; Nominal diameter 15mm; Length 108mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 3.53 Kg
Short Itemnumber: BA17815S0
https://www.stasto.rs/web/image/product.template/130248/image_1920?unique=78aebe9

flanged ball valve with pneumatic actuator series BA178-S0; fire-safe; TA-Luft; length according to ANSI B16.10; flange ANSI150; full bore; body AISI 316; ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...20bar; nominal diameter 15mm; length 108mm; actuator PAS0525

72.404,00 din. 72404.0 RSD 72.404,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...20bar
DN 15 mm
Length 108 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...20bar
DN 15 mm
Length 108 mm

BA178-15-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA178-15-L-A
BA178-15-L-A x 1.0 Pcs
Flanged ball valve BA178-15-L-A
Flanged ball valve Series BA178; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Pressure range 0...20bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 108mm
Pneumatic actuator PAS0525
PAS0525 x 1.0 Pcs
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
RI3519 x 1.0 Pcs
RI3519
Mounting bracket; F05/F03-F04; Bolt 11-7
