BA295-25-D0-A

BA295-25-D0-A

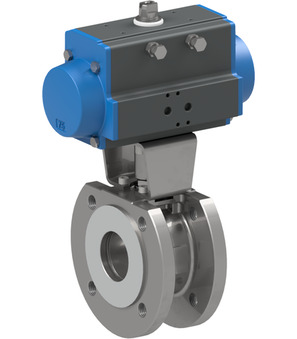

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/Carbographite; With o-ring From HNBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+50°C; Ambient temperature -40...+85°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Ammonia water With 25% Water; Actuator PAD052-L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.66 Kg
Short Itemnumber: BA29525D0A
https://www.stasto.rs/web/image/product.template/148626/image_1920?unique=f96ddcc

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/Carbographite; with o-ring from HNBR; double acting actuator; control pressure 5,5...8bar; medium temperature -30...+50°C; ambient temperature -40...+85°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; ammonia water with 25% water; actuator PAD052-L

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
Brand STASTO
Pressure range 0...16bar
Brand STASTO
BA295-25-L-A
BA295-25-L-A x 1.0 Pcs
BA295-25-L-A
Flanged ball valve; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/Carbographite; With o-ring From HNBR; Pressure range 0...16bar; Medium temperature -30...+50°C; Nominal diameter 25mm; Length 46mm; Medium Ammonia water With 25% Water; ATEX II 2 G/D c T3
Pneumatic actuator PAD052-L
PAD052-L x 1.0 Pcs
Pneumatic actuator PAD052-L
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3001 x 1.0 Pcs
RI3001
Mounting bracket; F05/F03-F04; 11-8
