BA317-15-S0-A3M-01

BA317-15-S0-A3M-01

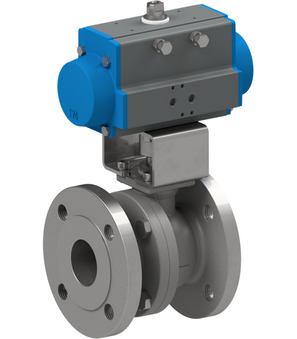

Flanged ball valve with pneumatic actuator; ANSI 300; ATEX II 2G/D c T3; TA-Luft; Length According to ANSI B16.10; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE-Reinforced/MFQ; Pressure range 0...50bar; Medium temperature -60...+160°C; Nominal diameter 15mm; Length 140mm; Single acting actuator; Control pressure 5,5...8bar; Actuator PAS0635-L Low temperature equipment -40...+85°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.66 Kg
Short Itemnumber: BA31715S0A3M01
https://www.stasto.rs/web/image/product.template/152367/image_1920?unique=f96ddcc

flanged ball valve with pneumatic actuator; ANSI 300; ATEX II 2G/D c T3; TA-Luft; length according to ANSI B16.10; full bore; body AISI 316; ball AISI 316; seals PTFE-reinforced/MFQ; pressure range 0...50bar; medium temperature -60...+160°C; nominal diameter 15mm; length 140mm; single acting actuator; control pressure 5,5...8bar; actuator PAS0635-L low temperature equipment -40...+85°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; technical valve passport RU according to TR CU 032/2013; incl. TR CU 032/2013 (incl. strength calculation), TR CU 010/2011; incl. EAC-certificate

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA317-15-L-A3M-01
BA317-15-L-A3M-01 x 1.0
BA317-15-L-A3M-01
Flanged ball valve ANSI 300; ATEX II 2G/D c T3; TA-Luft; Length According to ANSI B16.10; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE-Reinforced/MFQ; Pressure range 0...50bar; Medium temperature -60...+160°C; Nominal diameter 15mm; Length 140mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate
Add to Cart
Pneumatic actuator PAS0635-L
PAS0635-L x 1.0
Pneumatic actuator PAS0635-L
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
Add to Cart
