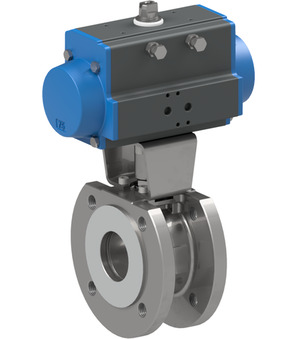

Flanged ball valve with pneumatic actuator BA389-65-D0-A

Name: Flanged ball valve with pneumatic actuator BA389-65-D0-A
Brand: STASTO
SKU: BA389-65-D0-A
Price: 171538.0 RSD
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA389-D0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16; Body, Ball 1.4401; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Pressure range 0...16bar; Nominal diameter 65mm; Length 105mm; Actuator PAD085

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.79 Kg
Short Itemnumber: BA38965D0A

flanged ball valve with pneumatic actuator series BA389-D0-A; ATEX II 2 G/D; fire-safe; TA-Luft; flange PN16; body, ball AISI 316; seals TFM-MPTFE/PTFE/Graphoil; stem sealing V-Pack; double acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; pressure range 0...16bar; nominal diameter 65mm; length 105mm; actuator PAD085

171.538,00 din. 171538.0 RSD 171.538,00 din.

DN
- 40 mm
Length
- 63,5 mm
Design
- ATEX
Pressure range
- 0...16 bar
Actuator
- PAD063

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	63,5 mm
design
Design	ATEX
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAD063

BA389-65-L-A x 1.0

Flanged ball valve BA389-65-L-A

Flanged ball valve Series BA389-L-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Medium temperature -40...+180°C; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 105mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

RI3522 x 1.0
