BA467-34-0L

BA467-34-0L

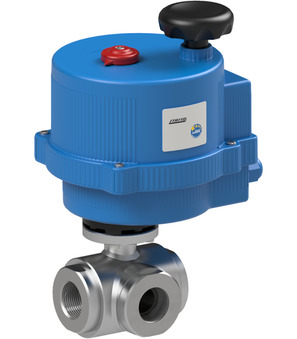

Ball valve with electrical actuator Series BA467; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FFKM; Full bore; Medium temperature 0...+100°C; G 3/4"; DN 20mm; Pressure range 0…100bar; Length 92mm; Operating time 8s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.06 Kg
Short Itemnumber: BA467340L
https://www.stasto.rs/web/image/product.template/205251/image_1920?unique=f96ddcc

ball valve with electrical actuator series BA467; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FFKM; full bore; medium temperature 0...+100°C; G 3/4"; DN 20mm; pressure range 0…100bar; length 92mm; operating time 8s; voltage 24VAC/DC; ball L

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 3/4"
DN 20 mm
Length 92 mm
Designs
Ball L
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar, 0...100 bar
characteristics
Actuator VB0300E8Q14
Operating time 8 s
Ball valve made of stainless steel BA467-34-B
BA467-34-B x 1.0
Ball valve made of stainless steel BA467-34-B
Ball valve made of stainless steel Series BA467; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FFKM; Sealing on three ports; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...100bar; Length 92mm; Ball L; Flange ISO5211 F05; Square 14mm
Add to Cart
Electrical actuator VB030-0E8-Q14
VB030-0E8-Q14 x 1.0
Electrical actuator VB030-0E8-Q14
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 14mm; Voltage 24VAC/DC; Protection class IP67
