BA493-12-D0-AB

Name: BA493-12-D0-AB
Brand: STASTO
SKU: BA493-12-D0-AB
Price: 44662.0 RSD
Availability: InStock

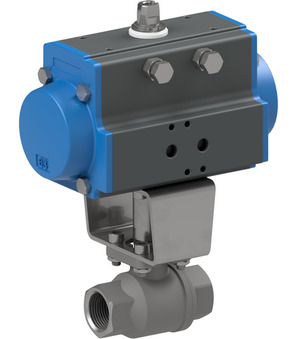

Ball valve with pneumatic actuator Series BA493-D0-AB; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0…140bar; Length 66mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.54 Kg
Short Itemnumber: BA49312D0AB

ball valve with pneumatic actuator series BA493-D0-AB; ATEX II 2 G/D; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE/FFKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0…140bar; length 66mm; actuator PAD052

44.662,00 din. 44662.0 RSD 44.662,00 din.

Female thread
- RP 1/2"
DN
- 15 mm
Length
- 66 mm
Design
- ATEX
Pressure range
- 0...140 bar
Actuator
- PAD052

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 1/2"
DN	15 mm
Length	66 mm
design
Design	ATEX
pressure
Pressure range	0...140 bar
characteristics
Actuator	PAD052

BA493-12-L-A x 1.0

Ball valve made of stainless steel BA493-12-L-A

Ball valve made of stainless steel Series BA493-A; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/FFKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart

RI3782 x 1.0
